Fiber-reinforced Endodontic Posts

Macro-Lock Post® Illusion X-RO

Macro Lock Illusion X Ro 1 Macro Lock Illusion X Ro 2 Macro Lock Illusion X Ro 3 Macro Lock Illusion X Ro 4 Macro Lock Illusion X Ro 5
  • Patented & exclusive X-RO fibers provide unparalleled Flexural Strength
  • Patented Illusion color-change technology eases size identification, removal
  • Macro-retentive undercut features on apical and coronal sections for maximum retention
  • Superior Fatigue Resistance and Mechanical Properties
  • Two flat sides on coronal section to prevent rotation of core.
  • Parallel coronal section offers maximum diameter for strength, surface area for adhesion
  • Push-out Adhesion to dentin confirmed superior to smooth posts of the same shape
  • Can be a-traumatically removed in minutes.

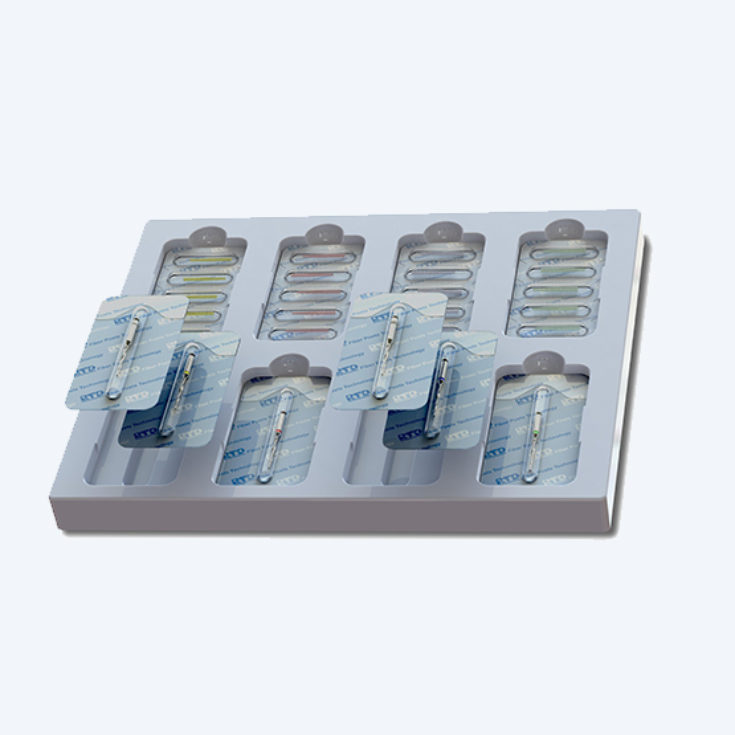

  • Posts and drills are provided in hygienic "blister" packaging.

Macro Lock Post Illusion More

More information

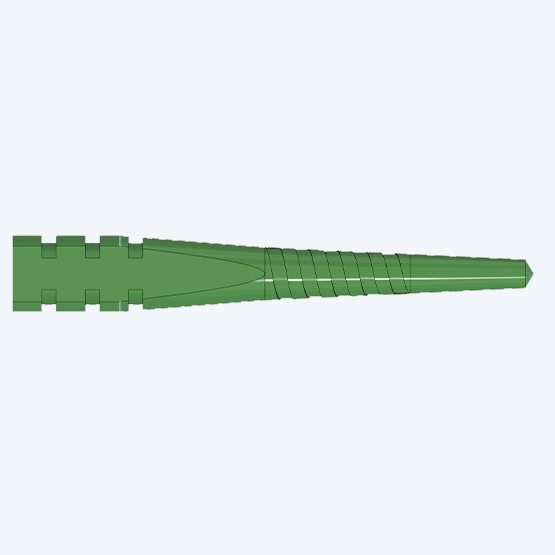

The post has a tapered apical segment, and a parallel coronal section.

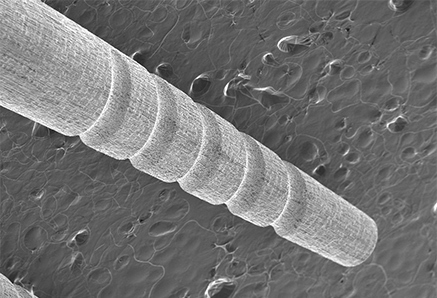

In addition, the surface of the post is roughened with controlled specificity to a highly micro-mechanical surface for excellent bonding and long-term retention.

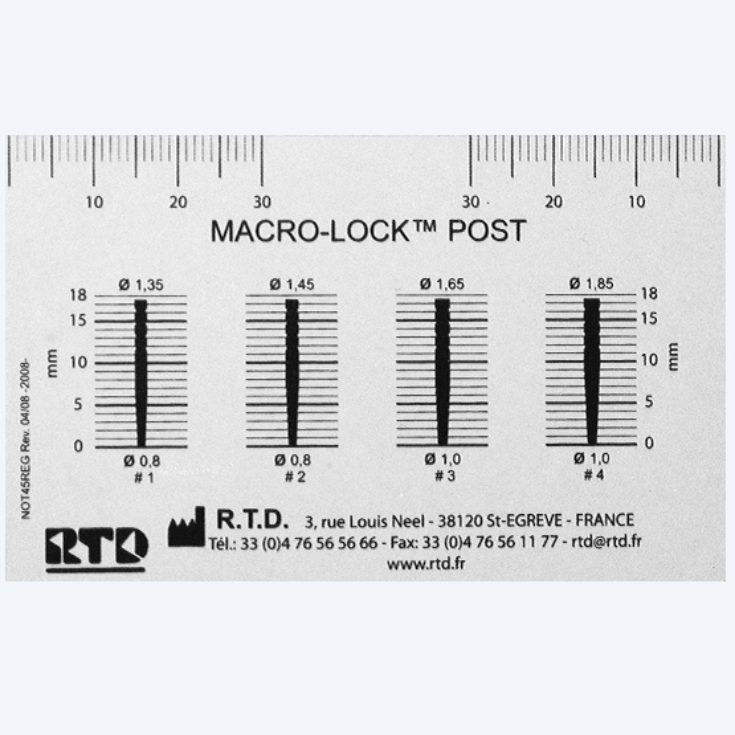

Available in six sizes, the intrinsic post colors match the drill markings and help the clinicians distinguish one size from another. With this Illusion Technology, the color disappears within seconds at body temperature, but the color can be reconstituted, if necessary for re-treatment, within seconds.

View the product in video


Manfred Friedman, Private Practice, Adjunct Professor, Schulich School of Medicine & Dentistry, Univ. of Western Ontario, London, Ontario, Canada

I have placed over 500 Macro-Lock posts without a single failure. The tapered shape facilitates minimal removal of tooth structure and ensures a minimal amount cement, which minimizes polymerization shrinkage and micro-leakage. Superior physical properties, along with macro and micro-retention, and anti-rotational features make this my post of choice for extensively broken down teeth.

Sandra Costa Zamboni, Dept. of Dental Materials and Prosthodontics, São Paulo State University at São José dos Campos, Brazil

I have used RTD fiber posts since 1997 and do not have cases of breaking or failure in my treatments.

Mechanical properties
Elastic modulus calculated at 30°15.2 GPa
Flexural strength (ISO 14125)1800 MPa
Interlaminate shear strength60 - 75 MPa

Fatigue Cycles Without Rupture

10 000 000
Radiopacity (ISO 4049)340% Al
